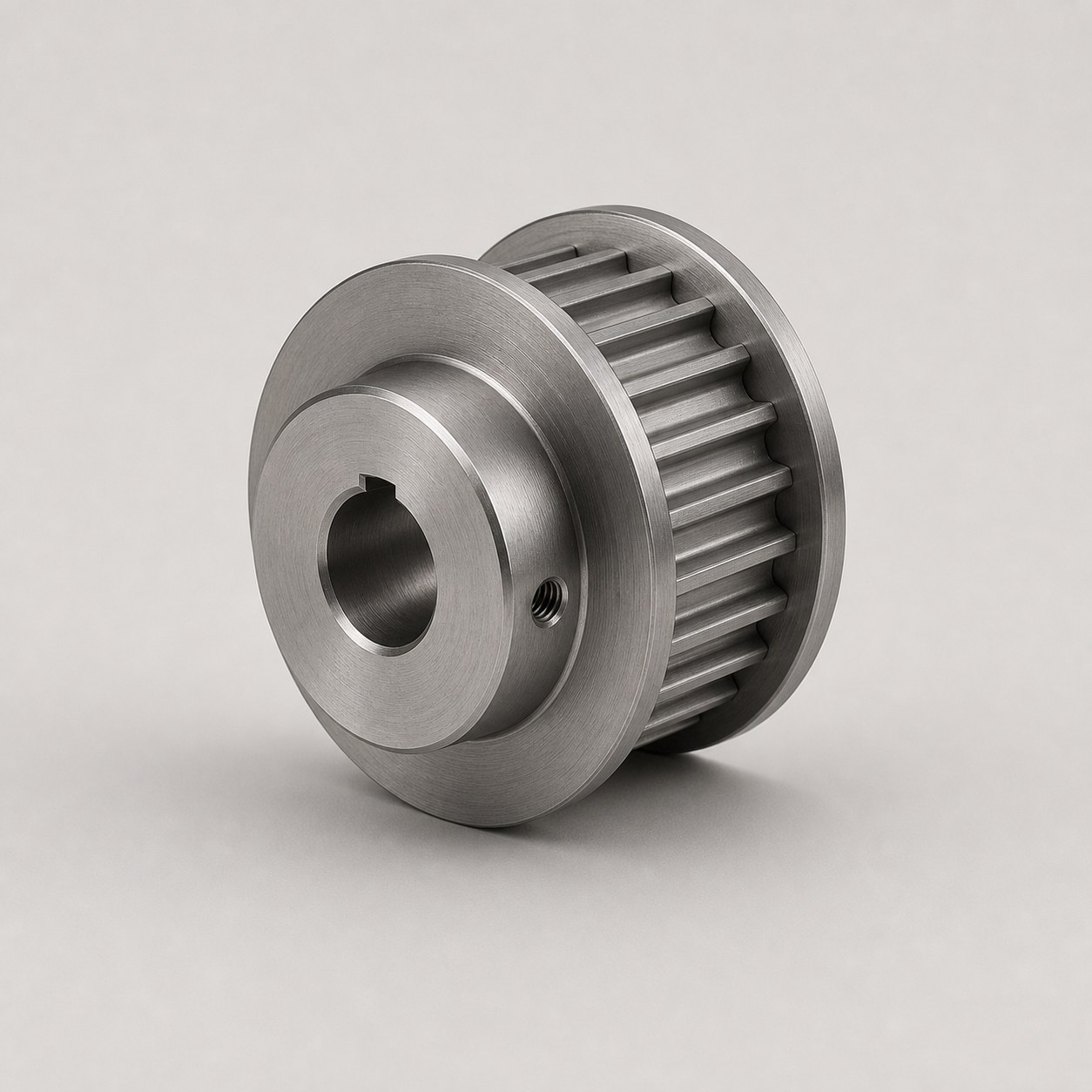

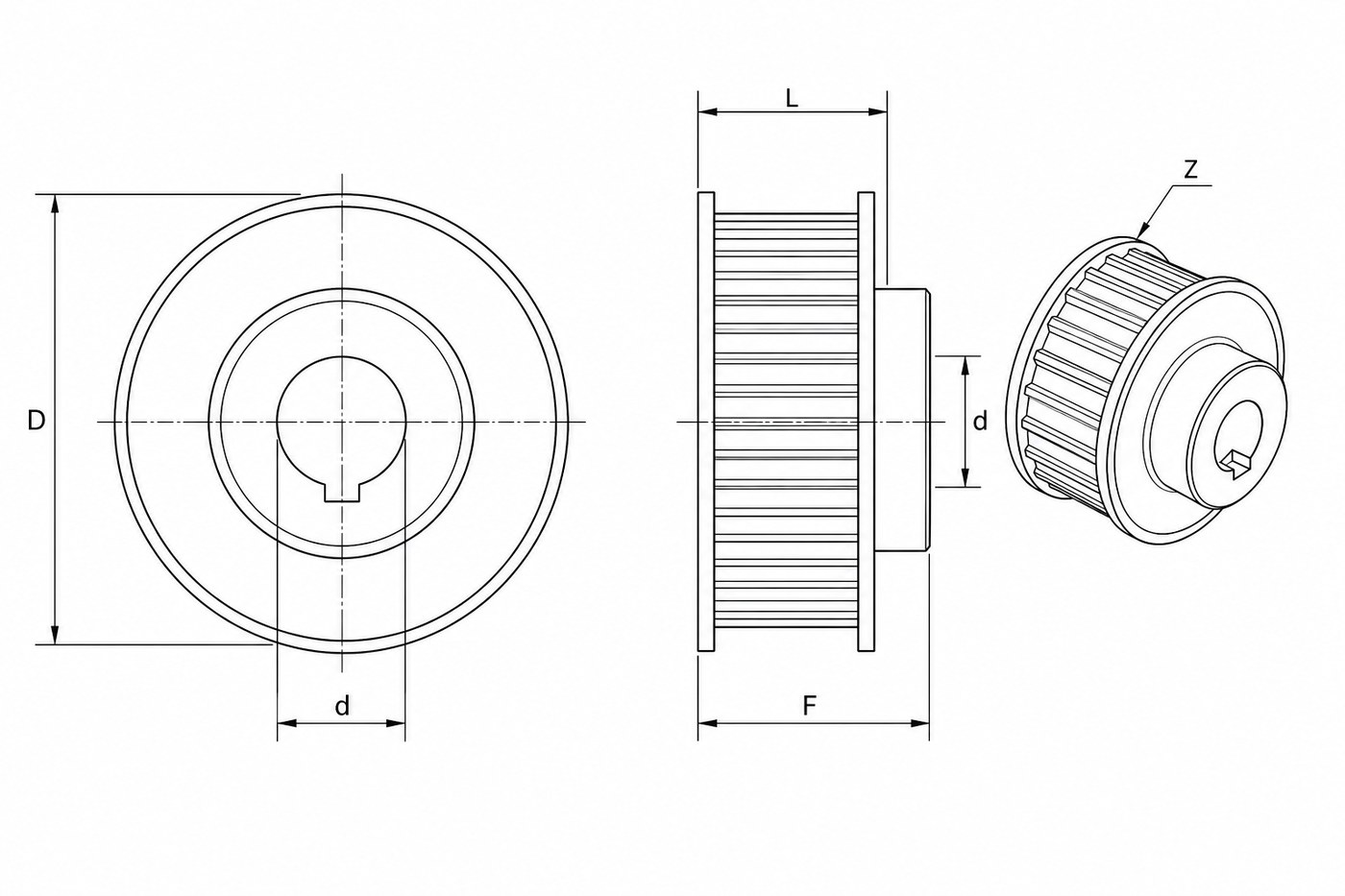

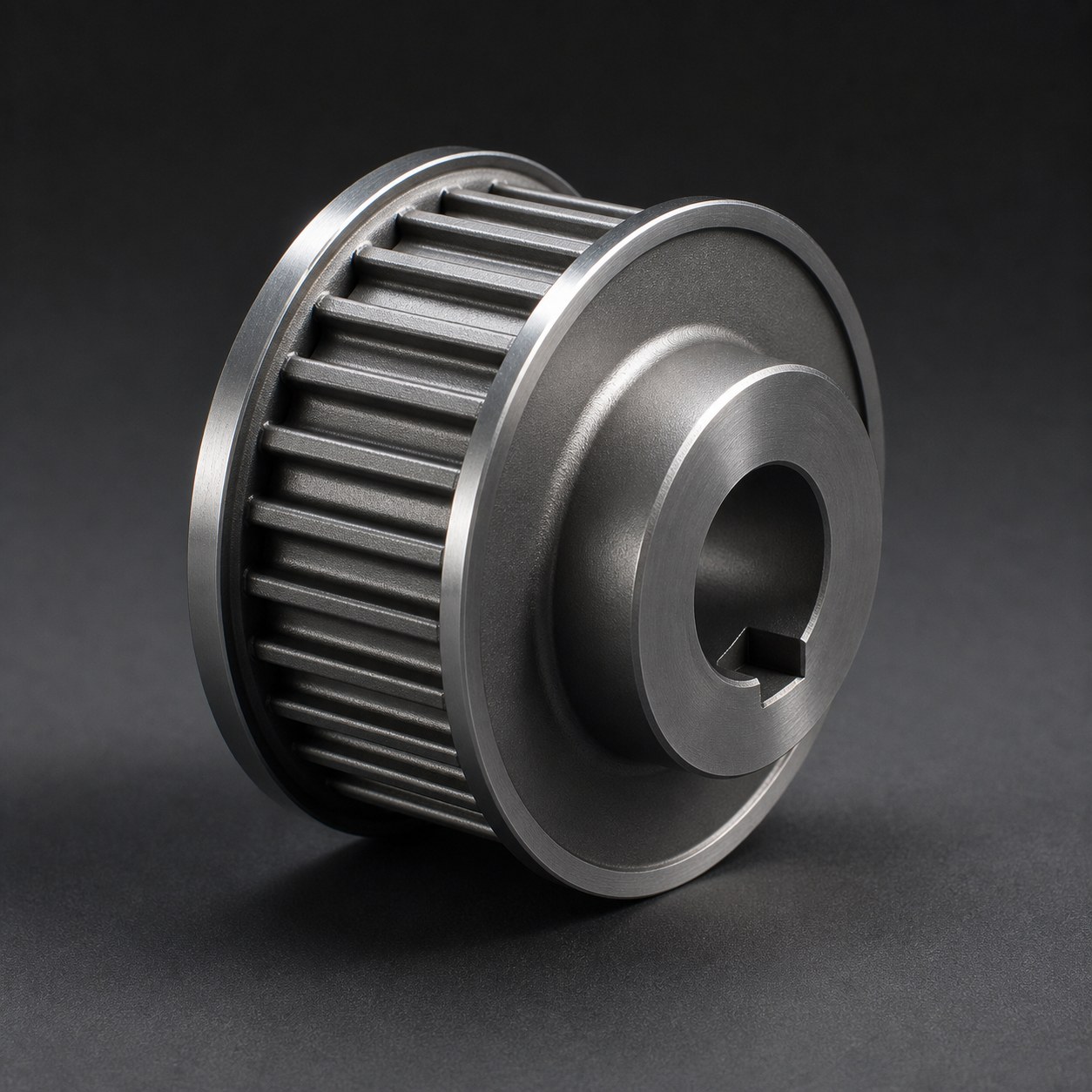

| Ürün Kodu | Ürün Açıklaması | Tip | Flanş Kodu | Diş Sayısı | Ölçüler (mm) | İndirilebilir | |||||||
| Z | Dp | De | Df | Dm | Di | F | L | d | Dosyalar | ||||
| 10T525AL | TRİGER KASNAK ALUMİNYUM 10 T5 25 | 6F | FL003 | 10 | 15,92 | 15,05 | 19,5 | 8 | 30 | 36 | 4 | ||
| 12T525AL | TRİGER KASNAK ALUMİNYUM 12 T5 25 | 6F | FL001 | 12 | 19,10 | 18,25 | 23,0 | 11 | 30 | 36 | 4 | ||
| 14T525AL | TRİGER KASNAK ALUMİNYUM 14 T5 25 | 6F | FL002 | 14 | 22,29 | 21,45 | 25,0 | 13 | 30 | 36 | 4 | ||
| 15T525AL | TRİGER KASNAK ALUMİNYUM 15 T5 25 | 6F | FL004 | 15 | 23,88 | 23,05 | 28,0 | 16 | 30 | 36 | 6 | ||
| 16T525AL | TRİGER KASNAK ALUMİNYUM 16 T5 25 | 6F | FL005 | 16 | 25,47 | 24,60 | 32,0 | 18 | 30 | 36 | 6 | ||
| 18T525AL | TRİGER KASNAK ALUMİNYUM 18 T5 25 | 6F | FL006 | 18 | 28,65 | 27,80 | 32,0 | 10 | 30 | 36 | 6 | ||
| 19T525AL | TRİGER KASNAK ALUMİNYUM 19 T5 25 | 6F | FL008 | 19 | 30,25 | 29,40 | 36,0 | 20 | 30 | 36 | 6 | ||
| 20T525AL | TRİGER KASNAK ALUMİNYUM 20 T5 25 | 6F | FL008 | 20 | 31,83 | 31,00 | 36,0 | 22 | 30 | 36 | 6 | ||
| 22T525AL | TRİGER KASNAK ALUMİNYUM 22 T5 25 | 6F | FL009 | 22 | 35,02 | 34,15 | 38,0 | 23 | 30 | 36 | 6 | ||
| 24T525AL | TRİGER KASNAK ALUMİNYUM 24 T5 25 | 6F | FL013 | 24 | 38,21 | 37,40 | 42,0 | 24 | 30 | 36 | 8 | ||
| 25T525AL | TRİGER KASNAK ALUMİNYUM 25 T5 25 | 6F | FL012 | 25 | 39,80 | 38,95 | 44,0 | 26 | 30 | 36 | 8 | ||
| 26T525AL | TRİGER KASNAK ALUMİNYUM 26 T5 25 | 6F | FL012 | 26 | 41,39 | 40,60 | 44,0 | 26 | 30 | 36 | 8 | ||
| 27T525AL | TRİGER KASNAK ALUMİNYUM 27 T5 25 | 6F | FL011 | 27 | 42,98 | 42,20 | 48,0 | 30 | 30 | 36 | 8 | ||
| 28T525AL | TRİGER KASNAK ALUMİNYUM 28 T5 25 | 6F | FL011 | 28 | 44,58 | 43,75 | 48,0 | 32 | 30 | 36 | 8 | ||
| 30T525AL | TRİGER KASNAK ALUMİNYUM 30 T5 25 | 6F | FL016 | 30 | 47,76 | 46,95 | 51,0 | 34 | 30 | 36 | 8 | ||
| 32T525AL | TRİGER KASNAK ALUMİNYUM 32 T5 25 | 6F | FL018 | 32 | 50,94 | 50,10 | 54,0 | 38 | 30 | 36 | 8 | ||
| 36T525AL | TRİGER KASNAK ALUMİNYUM 36 T5 25 | 6F | FL023 | 36 | 57,31 | 56,45 | 64,0 | 38 | 30 | 36 | 8 | ||
| 38T525AL | TRİGER KASNAK ALUMİNYUM 38 T5 25 | 6F | 38 | 60,48 | 59,48 | 38 | 30 | 36 | 8 | ||||
| 40T525AL | TRİGER KASNAK ALUMİNYUM 40 T5 25 | 6F | FL024 | 40 | 63,66 | 62,85 | 66,5 | 40 | 30 | 36 | 8 | ||
| 42T525AL | TRİGER KASNAK ALUMİNYUM 42 T5 25 | 6F | FL026 | 42 | 66,86 | 66,00 | 70,0 | 40 | 30 | 36 | 8 | ||
| 44T525AL | TRİGER KASNAK ALUMİNYUM 44 T5 25 | 6 | – | 44 | 70,05 | 69,20 | – | 45 | 30 | 36 | 8 | ||
| 48T525AL | TRİGER KASNAK ALUMİNYUM 48 T5 25 | 6 | – | 48 | 76,42 | 75,55 | – | 50 | 30 | 36 | 8 | ||
| 56T525AL | TRİGER KASNAK ALUMİNYUM 56 T5 25 | 6 | 56 | 89,127 | 88,127 | – | 55 | 30 | 36 | 8 | |||
| 60T525AL | TRİGER KASNAK ALUMİNYUM 60 T5 25 | 6 | – | 60 | 95,52 | 94,65 | – | 65 | 30 | 36 | 8 | ||
